The Fabricators Source ®

Silicone Strip Heaters

Our WIDE HEAT Silicone Heaters now give you the ability to heat thermoplastic material up to 6" WIDE. Ideal for material up to 1½" thick, or thin material requiring a wide radius.

Also ideal for heating rod or tube material, as flexibility of heater will allow you to bend or wrap it to fit.

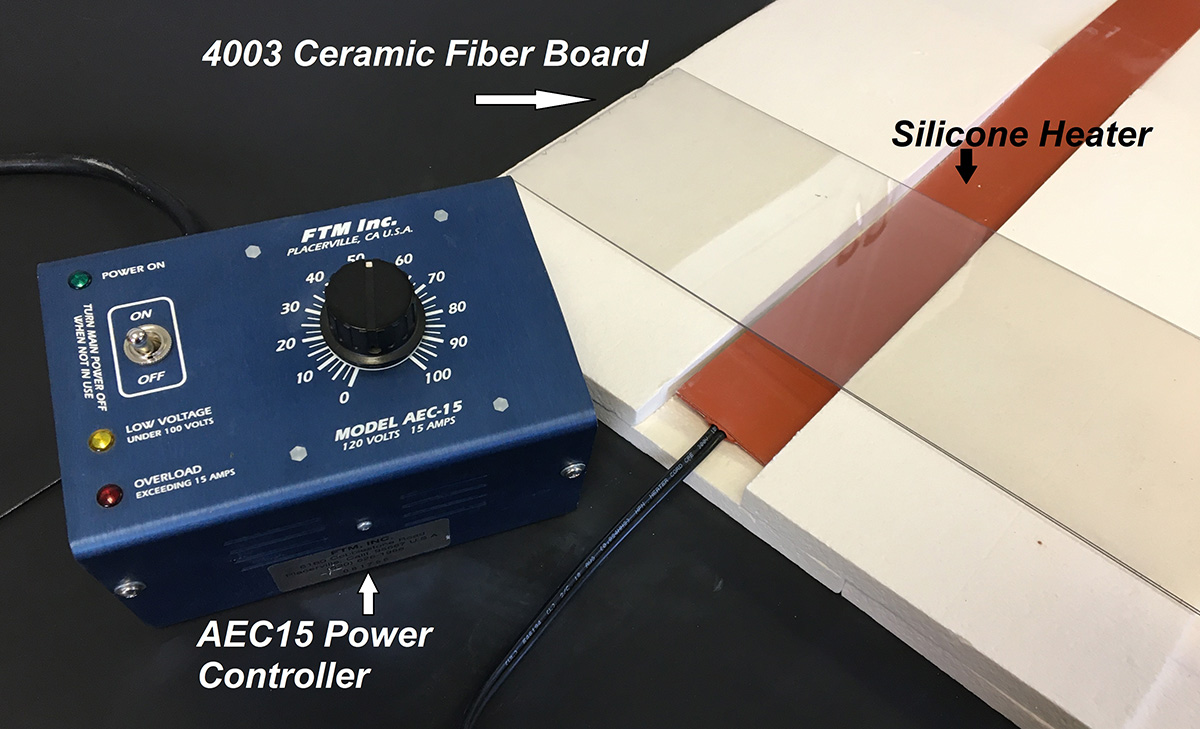

Can be used with our AEC15 power control which allows you to tailor the working temperature to your exact needs.

Specifications: All Heaters are 120 Volts, 60hz
Part No.	Heated Area	Amps / Watts	Maximum Temperature	Price
4101	1" x 29"	1.20 / 145	All stock heaters are 5 watts per sq. inch and heat to a maximum surface temperature of 475 ° f. CUSTOM sizes and watt densities are available upon request and have approximately a 4-5 week lead time from time of order.	$88.25
4102	2" x 29"	2.42 / 290		$105.15
4103	4" x 29"	4.83 / 580		$202.63
4104	6" x 29"	7.25 / 870		$234.30
4201	1" x 41"	1.71 / 205		$104.08
4202	2" x 41"	3.42 / 410		$145.75
4251	1" x 53"	2.17 / 265		$117.28
4252	2" x 53"	4.41 / 530		$182.10
4253	4" x 53"	8.83 / 1060		$210.90
4254	6" x 53"	13.25 / 1590		$280.55
4301	1" x 101"	4.20 / 505		$146.03
4305	1" x 125"	5.2 / 625	Note: This heater has 2 cords (one at each end).	$231.88
4003	Maxfire 1/2” x 6” x 15” Insulation for under heaters			$34.00

Please call us if you would like to place an order - Phone (530) 626-1986 • M-F 7:30 AM- 4:00 PM PST • Fax: (530) 642-2602
