Thermoplastic Heating Table

For Bending and Forming Plastics (Patent Pending)

Complete Heating System from FTM, Inc. - The Fabricators' Source

Exclusively designed to give constant professional bends while working with all types of thermoplastic materials

Acrylic • Polycarbonate • PETG • ABS • Styrene • PVC • and More!

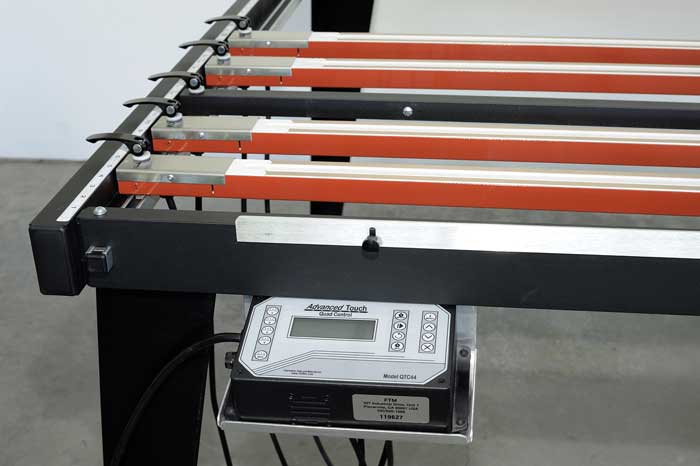

The 56000 models are re-designed from the ground up and include some great new features. These new features include the all NEW QTC44 controller, a Unistrut Rail System with 56″ x 48″ working area, quick release Cam Clamp Tray Locks, Material Support with Stops, Integrated Frame Stops and a NEW Leg Kit. With faster set-up and more adjustability, the 56000 models will REDUCE FABRICATION TIMES.

56000 MODELS INCLUDE:
  • 4 Heating Trays
  • QTC Controller with Mounting Tray
  • Powder Coated Aluminum Frame
  • 16 Gauge Powder Coated Steel Legs
  • Material Support Bar
  • 4 Stop Plates
Models Description Price Buy
  56250   1/4" Thermoplastic Heating Table $2695.00 $2595.00
  56375    3/8" Thermoplastic Heating Table $2695.00 $2595.00
  56500   1/2" Thermoplastic Heating Table $2695.00 $2595.00
Special price until 12/31/19!




Insulation:

  • 120 Volt AC / 60HZ
  • 800° Operating Temperature
  • 62" Wide x 54" Deep x 5" High
  • 48" Wide x 48" Deep Working Area
  • 68 lbs. Approximate Assembled Weight

Heating Trays (4)

  • Micro Processor Controlled
  • Built in 3 Function Timer
  • Ultra High-Temperature Insulation
  • Sealed & PTFE coated working area
  • Heating Trays have a 1 3/4" center to center measurement when put side by side.
  • Powder coated finish.
Download manual
  56000 Manual



ELECTRICAL INFORMATION
  Controller   Micro Processor
  Maximum Load   1800 watts / 15 Amp
  Input Voltage / Hz   120v AC / 60 Hz
  Current Control Range   0 to 100%
  Fuse   BK/MDA-15-R

DIMENSION & WEIGHT
  Overall   62" wide x 58" deep x 34" high
  Working Area   48" wide x 56" deep
  Assembled Weight   86 lbs.

TRAY HEATED AREA
  56250   1/4" - 48"
  56375   3/8" - 48"
  56500  1/2" - 48"

MATERIAL THICKNESS GUIDE:
  56250   .040" - .080" (1mm - 2mm)
  56375   .080" - .156" (2mm - 4mm)
  56500  .125" - .500" (3mm - 12mm)

56000 Series Accessories List

Additional Trays
  Part No.   Descripton Price

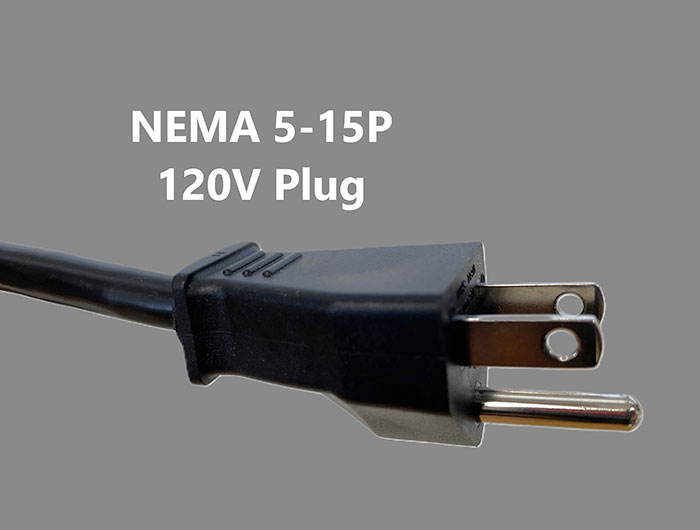

  TT250  Extra Tray ¼" with Nema 5-15 Plug, 120V $379.00
  TT375  Extra Tray 3/8" with Nema 5-15, 120V $329.00
  TT500  Extra Tray ½" with Nema 5-15 Plug, 120V $329.00
Replacement Trays
  Part No.   Descripton Price

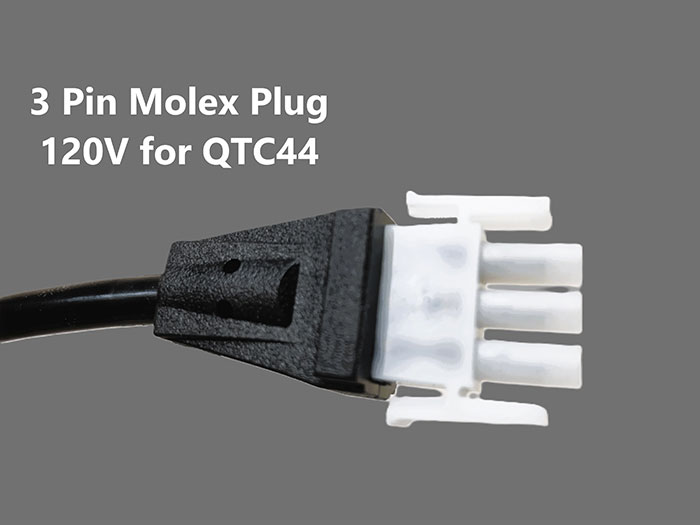

  TT250M  Extra Tray ¼" with 3 Pin Molex Plug, 120V $379.00
  TT375M  Extra Tray 3/8" withh 3 Pin Molex Plug, 120V $329.00
  TT500M  Extra Tray ½" withh 3 Pin Molex Plug, 120V $329.00
Supports & Stops
  Part No.   Descripton Price
  SS56  Material Support with 2 Stops & Hardware $150.00
  SP24  2 Stops Plates with hardware $22.85
Controller
  Part No.   Descripton Price
  QTC44 Digital Controller (4 Tray) use with TT250M, TT375M & TT500M Trays $457.00

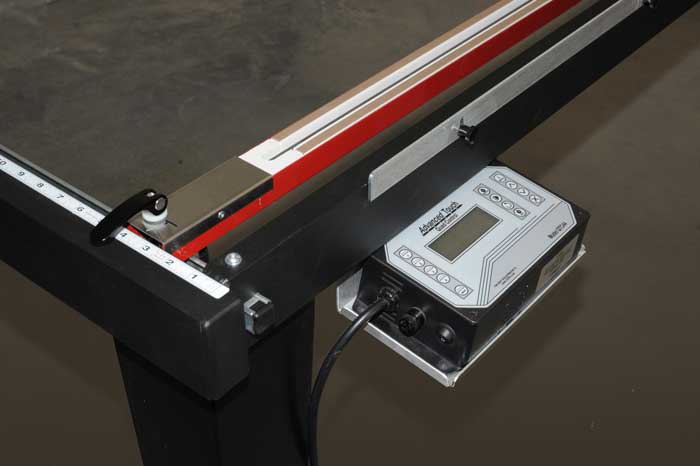

This System prepares thermoplastic materials for forming all-angle bends, REDUCES FABRICATION TIME both in setup and multiple bend operations. Unit has independently operated and movable heating trays, index rules on either side of table, full usage of working area allows you to work from both sides of the table at the same time. The adjustable fence may be positioned as shown or between trays. Units are completely self-contained and requires NO SPECIAL WIRING. (120 volt 15 amps)



;
